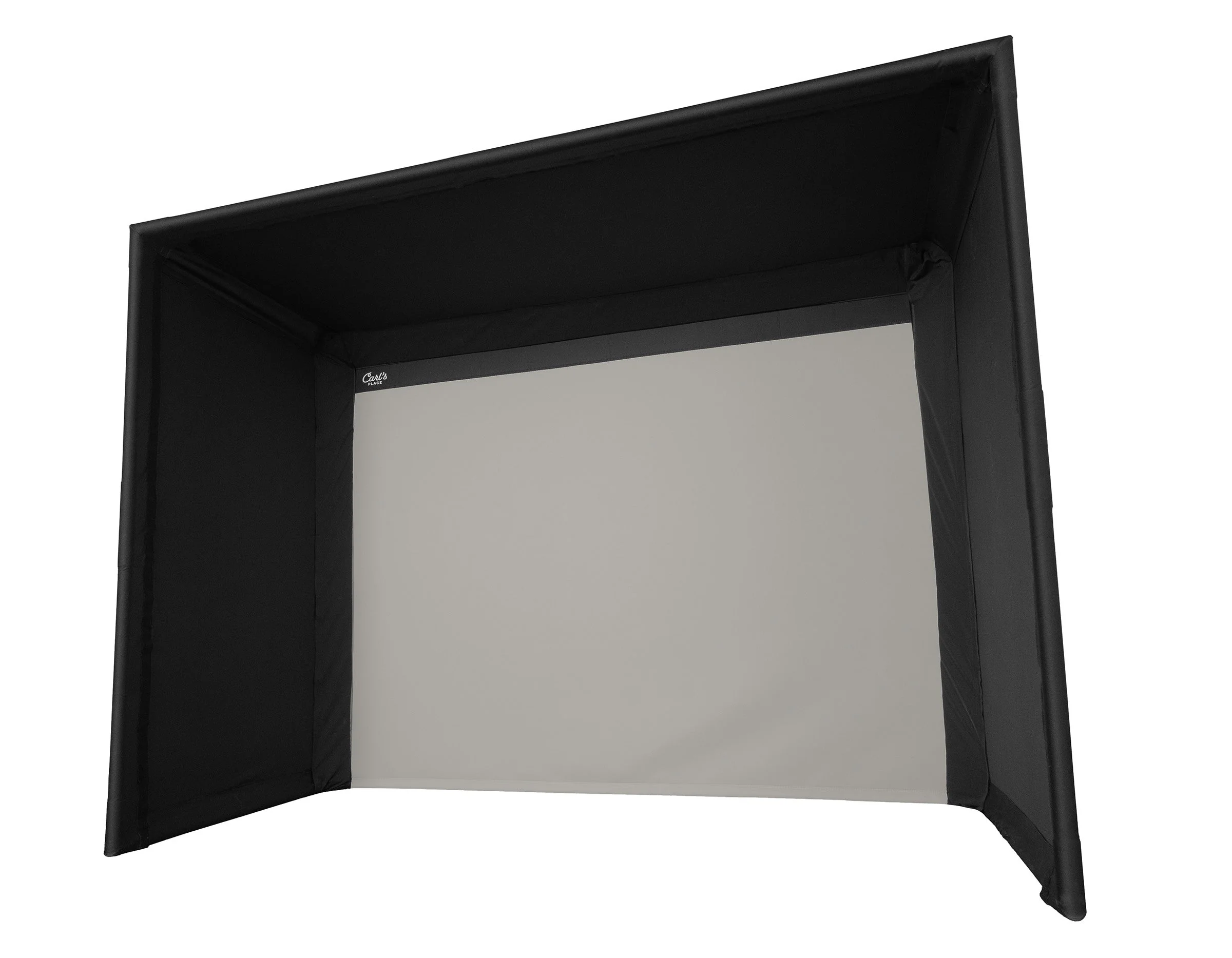

The Carl's Place C-Series Pro Golf Simulator Enclosure Kit with Impact Screen is the premier choice for high-end commercial and luxury home golf simulator installations. Offering a seamless, turf-to-screen experience with a borderless bottom, you’ll be fully immersed in your practice sessions. The latest generation has been reimagined to reduce rebound and elevate image quality with a sleek, modern design that keeps installation simple and performance high.
The Pro Golf Simulator Enclosure is offered in 6 sizes and 4 enclosure depths to accommodate virtually any space requirement. The Carl's Place C-Series Pro Golf Simulator Enclosure Kit gives you the choice between Carl’s Place’s Premium Golf Impact Screen or the High-Contrast Gray Golf Impact Screen, both crafted from durable, three-layer full-impact material designed to deliver exceptional image quality and performance.
New upgrades include a single wrap-around BlackStop™ knit enclosure that darkens the hitting area, detachable flaps with stronger, wider hook-and-loop fasteners for a clean, professional finish, and foam inserts that fit behind the flaps to help keep stray shots off the frame. A one-piece ceiling-and-sidewall design streamlines assembly - cutting setup time from around three hours to about two—so you can spend more time golfing and less time building.
Carl’s Place enclosures and impact screens are crafted with top-tier materials and designed for easy installation. Pair with the optional Pipe Framing Kit for a hassle-free setup, or source 2-inch EMT locally (true outer diameter 2.197″ / 55.8 mm) using the provided cut list.
Please note: Your Pro Golf Simulator Enclosure Kit does not come with pipe framing. If you do not purchase the Carl's Place Pipe Framing Kit, you will need to source 2-inch EMT (electrical metal tubing) pipes locally to complete the frame assembly.
Before purchasing, please view the Specifications tab to confirm that the Overall Enclosure Dimensions for the enclosure size you’ve selected will be suitable for your space.
Features
BlackStop™ Knit Enclosure
Premium, light-absorbing fabric creates a darker hitting environment for vivid colors and crisp contrast, helping you stay focused on every shot.
Foam Inserts Included
Pre-sized inserts sit behind the flaps to shield the frame from ricochets and help minimize bounceback for a safer, quieter setup.

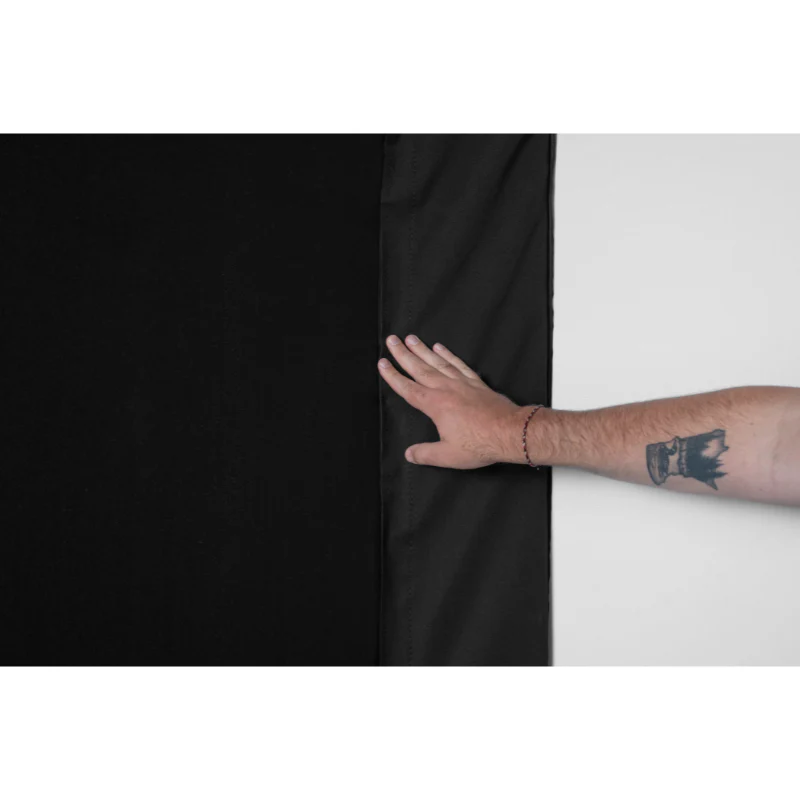

Detachable Flaps With Stronger Fasteners
Flaps are separate from the screen and secure with wider hook-and-loop strips, staying put through repeated impacts while maintaining a sleek, professional look.
One-Piece Ceiling And Sidewalls
A single wrap-around cover streamlines assembly and alignment, cutting setup time to about two hours for most installs.
Reduced Bounceback System
A premium three-layer impact screen, releasable zip ties, and a tensioned bottom cable work together to cushion shots and reduce rebound.
Versatile Crossbar System (Optional)
The stand-alone ceiling crossbar slides forward or back for perfect placement and can support overhead launch monitors and lighting—future-proof for evolving tech.
Pipe Framing Kit Option
Choose the pre-cut, labeled pipe kit for a truly plug-and-play build, or source 2-inch EMT locally using the provided cut list.
Back Cover And Safety Baffles (Optional)
Add a back cover to block ambient light and enhance image quality, and ceiling baffles to help knock down high-angle shots—great for commercial locations.
What’s Included
Included with Your Purchase:
- Premium Golf Impact Screen Material
- BlackStop™ Knit Enclosure
- Detachable Flaps With Wider Hook-And-Loop Fasteners
- Foam Inserts For Frame Protection
- One-Piece Wraparound Ceiling And Sidewalls
- Steel Fittings And Elbows
- Ball Bungees And Releasable Zip Ties
- Bottom Cable With Springs And Cable Receivers
- Bag With Literature And Hardware
- Impact Screen With Pre-Threaded Bottom Cable
Premium Golf Impact Screen Material
Carl's Place Premium Golf Impact Screen is the highest quality and smoothest surface available on a full-impact material. Constructed of three layers of heavy-duty, tight-knit impact-resistant polyester, you will have confidence knowing that you will be able to project the highest image quality on your screen that can withstand even the highest ball speeds.
Black Knit Enclosure
Black knit fabric provides for a tough surface to catch any stray shots that attempt to leave the simulator. The dark color also shades your screen to allow for a bright contrast, clear image that is projected on your screen.
Steel Fittings
Steel fittings and elbows are included to connect the framing pipes for your simulator. We highly recommend that you purchase the Carl's Place Pipe Framing Kit accessory, otherwise you will have to purchase 2-inch EMT pipes from your local hardware store to complete the assembly of your Pro Enclosure.
Ball Bungees and Zip Ties
All of the fasteners you need to secure your enclosure and screen are included. Releasable zip ties provide you with an abundance of options for tensioning your impact screen. Enough ball bungees are included so you can experiment with finding the perfect balance of tension and slack for your screen. How close you are hitting to the screen, ball speed, clubs, and spin rate all impact the responsiveness and acoustics of your screen.
Before purchasing, please view the Specifications tab to confirm that the Overall Enclosure Dimensions for the listing size you’ve selected will be suitable for your space.
Specifications
-
Available Depths: 5', 8', 10', 15' (Frame Footprint Extends ~1 Ft Behind Screen)
-
Ceiling Buffer Space Recommended: 6–7 Inches
-
Side Clearance Recommended: 2–3 Inches Each Side (Subtract 4–6 Inches From Available Width)
-
Minimum Rear Clearance: 9.5 Inches Behind Enclosure For Rear Fitting
-
Crossbar Placement: Adjustable; On 15' Depth, A Crossbar Is Added ~7.5 Ft From Screen (Optional And Movable)
-
Frame Material (EMT): 2-Inch EMT (True O.D. 2.197" / 55.8 Mm)
-
Assembly Time: About 2 Hours With One-Piece Cover
-
Enclosure Cover: Single-Piece Wraparound Ceiling And Sidewalls
-
Flaps And Fasteners: Detachable Flaps With Wider Hook-And-Loop; Releasable Zip Ties For Screen
-
Screen Type: Three-Layer Heavy-Duty Premium Impact Screen
Accessories
Pipe Framing Kit
The Pipe Framing Kit is an essential accessory should you wish to have a hassle-free setup. Although this kit is optional, the pipes to built your your simulator frame are not. The kit includes pre-cut and market 2" EMT pipes that exactly meet the lengths required for the Pro Golf Simulator Enclosure Kit. Should you not purchase this kit, you will have to purchase 2-inch EMT pipes from your local hardware store to complete the assembly of your Pro Enclosure.
Safety Baffles
Safety Baffles protect the ceiling of your simulator enclosure while hitting higher shots. They are positioned across the width of your simulator enclosure on the ceiling and hang downward to catch and deflect high-angle shots that may bounce off the simulator screen.
Back Cover Kit & Back Cover Pipe Kit
The Back Cover Kit protects from any intruding light on the rear portion of your simulator enclosure. The Back Cover Kit ensures that you will achieve the highest projected image quality while also providing your simulator enclosure with a polished appearance so none of the rear framing is exposed. The Back Cover Pipe Kit is also offered so you do not have to purchase framing pipes from your local hardware store.
Please Note: While purchasing the Pipe Framing Kit, Foam Inserts, Safety Baffle, Back Cover Kit, or Back Cover Pipe Kit, be sure to choose the size that corresponds with your Golf Simulator Enclosure size. *Safety Baffles should match the width of your simulator enclosure.
Specifications
Depths: Available in 5', 8', 10', and 15' standard depths. The enclosure frame's footprint extends ~1 ft behind the screen.
Crossbar: Added 7.5' from the impact screen on 15' deep Pro Enclosures. Crossbar can be added to any Pro Enclosure upon request.
Shipping Information:
Without pipes, items ship in 4-5 boxes at 130-150 lbs. total.
With pipes, items ship freight at an additional cost. Someone must be present at delivery and assume responsibility for unloading the pallet, or be responsible for any charges incurred at the time of delivery. The heaviest box weighs ~50 lbs.
*Customers who are unable to unload the pallet box-by-box should add lift gate service. Please contact support@indoorgolfdirect.com to arrange for this.
Resources
Assembly:
EMT Requirements
Unless you have purchased the Pipe Framing Kit accessory, you will need to purchase 2-inch EMT (electrical metal tubing) from your local hardware store to complete your frame. Please note, 2-inch EMT is the US trade name of the material, however the true outer diameter is 2.197" or 55.8mm.
Documents
Pro Golf Simulator Enclosure Kit Cut Sheets:
Pro Golf Simulator Enclosure Back Cover Kit Cut Sheets:
